GOSSEN METRAWATT

Product Range

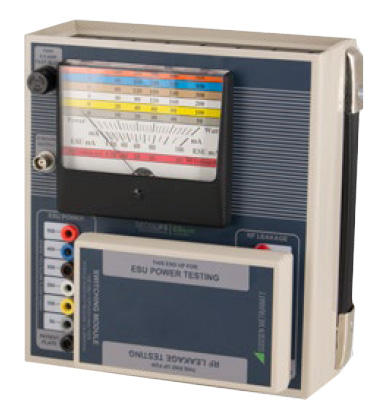

SECULIFE | ESbase Testing of High Frequency Generators

Type Article
SECULIFE ESBASE M695O

Benefits:

The SECULIFE | ESBASE (Germany) is an easy-to-use power meter for testing high frequency generators used in the field of HF surgery.

Measured values are indicated at a large analog display. The display’s color coded scale makes it easy to read the measurement results.

The SECULIFE | ESBASE (Germany) works without any external power supply and without batteries.

Two selectable current ranges are available: 0 to 1500 mA and 0 to 3000 mA. The SECULIFE | ESBASE (Germany) has been equipped with 6 different load resistors for the 1500 mA range (50, 75, 100, 200, 300 and 500 Ω). A 50 Ω load resistor is used in the 3000 mA range.

No active front panel controls: switching back and forth between the 1.5 and 3 A ranges is accomplished
by replugging the ESM-1 switching module. At the same time, the module blocks the terminals
of the unused range.

Features

  • Minimal weight
  • No power supply required
  • Color coded analog display
  • Easy, intuitive power measurement
  • No switching relays
  • Protective fuse with short response time

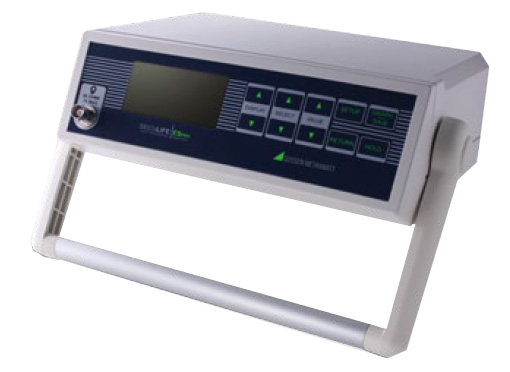

SECULIFE | ESPro Analyzer for Electrosurgical Devices

Type Article
SECULIFE ESPRO M695B

Benefits:

The SECULIFE | ESPRO (Germany) is an analyzer for electrosurgical devices with extremely high accuracy
which approaches calibration quality.

It’s suitable for use by manufacturers and users of high frequency surgical equipment who want to test
their HF generators in precisely the same way as the manufacturers of medical devices do, because it
boasts a measuring uncertainty of just 1%.

Features

  • Displays: mV, mV peak, mA, crest factor and power
  • Large graphic display with selection of options and parameter settings using a cursor
  • 1% deviation from the measured value
  • Digital data read-out via USB and RS 232
  • Optional PC application software provides additional functionality, diversity and an option for saving data
  • Digital calibration – no potentiometers to adjust
  • Graphic display of generator waveforms with scroll and zoom functions
  • Internally shielded input circuits
  • Acquisition, saving and printing of waveforms read out by ESU generators with up to 32,768 data points by means of special computer software.
  • Internal data memory for 3 complete data records with ESU waveforms
  • Creation of a user-specific table for load resistors based on the most commonly used load
    resistors
  • Selectable data displays
  • Smallest and lightest tester for HF surgical equipment

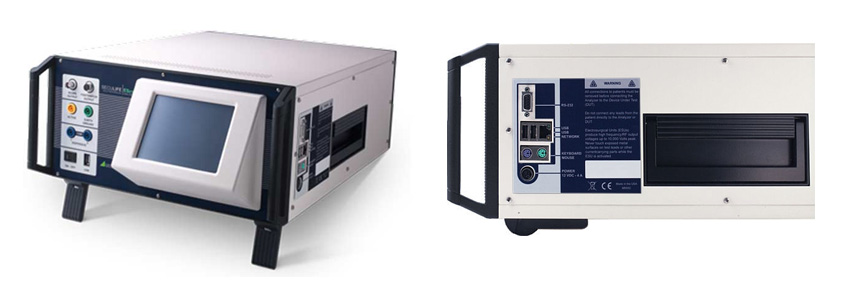

SECULIFE | ESXtra / ESPrime Electrosurgical Analyzer

Type Article
SECULIFE ESXTRA M695C
SECULIFE ESPRIME M695U


Benefits:

With its unprecedented features, the SECULIFE | ESXTRA / ESPRIME (Germany) has attained to entirely new standards for electrosurgical analyzers with comprehensive functionality.

It offers an unparalleled range of applications and features – all in a single, self-contained electrosurgical analyzer.

Thanks to the use of internal, induction-free high-precision test loads ranging from 0 Ω to 6400 Ω in previously unavailable 1 Ω steps, the SECULIFE | ESXTRA / ESPRIME (Germany) offers the required compatibility for hospitals as well as for manufacturers. For all eventualities, an option has been provided for adding an external load which assures 100% compatibility with test load requirements during the years to come.

With an HF current range of 2 to 7000 mA RMS (power range of 500 W RMS), the SECULIFE | ESXTRA / ESPRIME (Germany) surpasses all currently and previously available analyzers where measuring range is concerned.

The accuracy of the new analyzer, which approaches calibration quality, overcomes previous obstacles which thwarted other analyzers that boasted comprehensive functionality.

The SECULIFE | ESXTRA / ESPRIME (Germany) makes it possible for the user to execute mobile test sequences and calibration procedures with unequaled precision and accuracy, even for the newest generators offered by leading manufacturers.

Functions like automated power/load curve tests with multiple power steps per load setting and automated, user-defined test sequences with an unlimited number of steps, each of which can be furnished with nearly unrestricted ASCII text descriptions, have also contributed to catapulting the SECULIFE | ESXTRA / ESPRIME into a class of its own.

It’s even possible to individually program an automated test report for REM/ARM/CQM tests and/or HF leakage current measurements.

Use of state-of-the-art technology makes strict adherence to the standards of the electrosurgical industry possible through the performance of HF current measurements (instead of voltage measurements). This not only applies to measurements for conventional generators with “continuous” waveform output, but rather for generators with “pulsed” output as well.

The new SECULIFE | ESXTRA / ESPRIME (Germany) is in a class of its own, and its real-time operating system provides for nearly unlimited expansion options for future tasks. This makes it the logical choice of customers who are looking for an analyzer with comprehensive functionality.

As compared with the SECULIFE | ESXTRA / ESPRIME (Germany) , the high sampling rate of the SECULIFE | ESXTRA / ESPRIME (Germany) enables measurement and analysis of pulsed waveforms with up to three different amplitudes.

Features:

  • HF current measurement per industry standard for multiple, pulsed waveformsSECULIFE | ESXTRA / ESPRIME (Germany)
  • Ultra-fast digitizing of complex HF waveforms
  • Compatible with continuous and pulsed output waveforms
  • Integrated real-time operating system with ¼ VGA color touch-screen
  • Displays up to 15 different measuring parameters in selectable, definable views
  • Internal precision test loads from 1 Ω to 6400 Ω in 1 Ω steps
  • Compatible with external test loads
  • Automated current-power curves with various power levels per load value setting
  • Automated, freely definable test sequences
  • Printing of test results at printers with RS 232 or USB connection
  • USB (3), RS 232 and Ethernet communication ports
  • Compatible with external keyboard and mouse thanks to dedicated connectors
  • Automatic or manual activation of the ESU generator during the load curve test

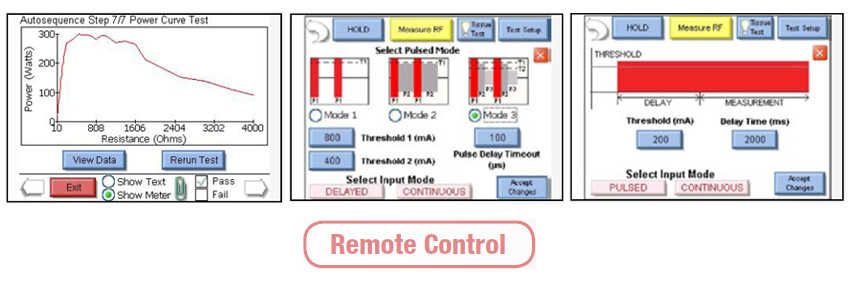

  • Remote control of the ESU generator is possible
  • REM/ARM/CQM test with 500 Ω load, adjustable in 1 Ω steps
  • HF leakage current measurement
  • Acquisition, storage and print-out of HF waveforms
