Benefits:

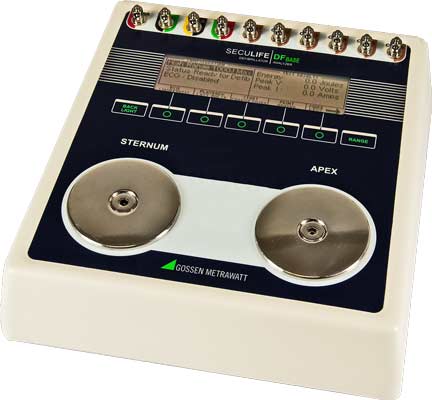

Defibrillator analyzer for performing function tests on external defibrillators.

The specified energy level is measured using an integrated load which simulates the human body (50 Ω). Quick and direct observation and selection of the desired ECG waveforms and test data is also made possible.

A 12-channel ECG with arrhythmias and power waveforms is available for determining the current pulse. These can be recorded and viewed at the defibrillator’s display. The SECULIFE | DFBASE is fully AED compatible and is equipped with an auto-sequence function that can execute up to 50 test sequences which have been preprogrammed by the user. The tests are configured with easy-to-use software.

Features

• Monophasic, biphasic and biphasic pulsed energy measurement
• Cardioversion delay measurement
• Capacity: 5000 V, 1000 joule
• 10 universal patient cable connector sockets
• Flash programmable for upgrades

Benefits:

The SECULIFE | DFPRO (Germany) multimode defibrillator analyzer is an intelligent instrument for testing the latest generation of defibrillators. It measures discharged energy and provides information regarding the defibrillator pulse. The measured pulse can be graphically displayed as well. The tester is suitable for manual, semi-automatic and automatic defibrillators with monophasic, biphasic and biphasic pulsed waveform output.

Furthermore, the SECULIFE | DFPRO (Germany) can also be used for testing transcutaneous cardiac pacemakers. The SECULIFE | DFPRO (Germany) makes it possible to quickly and directly observe and select the desired waveforms and test data. All operating information can be viewed at the graphics-compatible display (240 x 64 pixels), which makes it easy to navigate through the parameters and to scroll through all available options.

Features

• Test for shock algorithms
• Fully AED compatible
• Cardioversion delay measurement (PRO)
• 26 selectable internal loads (PRO)
• Complete pulse analysis (PRO)
• Power demand sensitivity test (PRO)
• Refractory period tests (PRO)
• Defibrillator protection for pacemaker input (PRO)

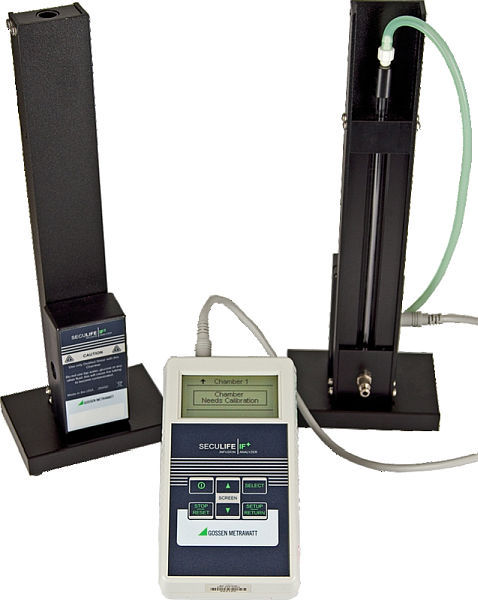

Benefits:The SECULIFE | IF+ is intended for testing the flow rate values of intravenous infusion pumps,
in order to assure flawless functioning.

All tests are controlled by a microprocessor which calculates and displays the results.

The fluid path is free of obstacles, which makes cleaning easy. The tubing is made of plastic instead of glass, thus making it more rugged. The cables and chambers are replaceable.

Features:

• Simultaneous testing of two infusion pumps
• Two chamber sizes (3.5 and 35 ml)
• Ranges: 0 to 999.9 ml per hour and 0 to 9999 ml per hour
• ±1% deviation from the measured flow rate value
• Digital calibration – no potentiometers to adjust
• Sealed fill-level sensors
• Manual or automatic test start can be programmed

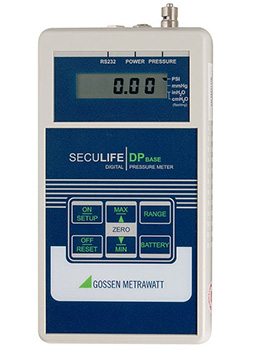

Benefits: The SECULIFE | DPBASE is a microprocessor controlled digital pressure gauge which permits
positive as well as negative pressure measurement in liquids and gases using various physical units of
measure.

Features :

• Range: -13.50 to 100.00 PSI
• Pressure scale with PSI, inH2O, cmH2O and mmHg
• Digital calibration and zero balancing
• Pressure accuracy: ±0.1%
• 5 digit LCD display
• Measurement of liquids and gases

Benefits:

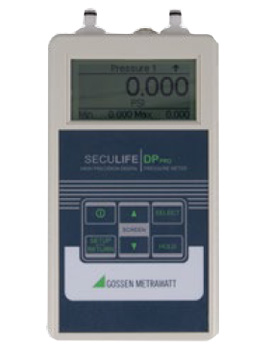

The SECULIFE | DPPRO is a high-precision digital pressure gauge. It measures compatible gas and liquid pressure values in various units of measures. It’s equipped with one or two pressure sensors and an optional temperature sensor input, in order to be able to acquire pressure and temperature with a single measuring instrument. An analog output is also available as an option.

Selectable pressure sensor ranges: 0.3, 5, 10, 75 and 100 PSI.

Features:

• 16-bit measurement
• Digital calibration and zero balancing
• Measurement of pressure and partial vacuum
• Measurement of liquids and gases
• Optional DC or HF outputs (cycle rates of up to 100 Hz)
• Pressure measuring accuracy: ±0.05%
• Selectable display options and digit sizes
• Large graphic display with selection of options and parameters setup using a cursor
