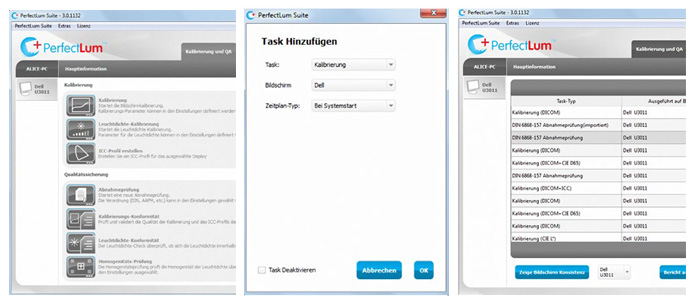

Perfectlum Software Medical Monitor Quality Assurance Suite

Type Article


PerfectLum 3.x Suite is a medical monitor quality assurance suite based on the following medical standards: NEMA DICOM part 14 GSDF, AAPM TG18, DIN 6868-57, DIN 6868-157, JESRA X-0093 and IEC 62563-1.

The medical monitor QA tool performs calibrations, as well as approval and conformity tests.

The consistency of all medical workstations is thus assured. Use of this software makes it possible for technical medical personnel to ensure adherence to national and international standards.

Hospitals and clinics subject their medical equipment to a quality management program. Nevertheless, displays used for diagnostics and observation are frequently not included in these quality assurance procedures.

No monitor, medical or otherwise, displays images perfectly. Poor image quality results in fatigue for the doctors, additional time spent on observation and, in some case, to incorrect diagnoses. Decisions of vital importance which are based on the observation of computer displays necessitate calibration and quality assurance.

The DICOM Standard was developed and published by NEMA in the USA (National Electrical Manufacturers

Part 14 of this standard describes how pixel values should be interpreted and displayed.
It also establishes a function which places pixel values in relationship to the displayed luminance values. This function is designated GSDF (gray scale display function).

In some countries, the legislators stipulate acceptance tests for diagnostic and observation displays when they’re installed, as well as constancy tests at regular intervals for quality assurance. Important QA standards include: AAPM TG18, DIN 6868-57, DIN 6868-157, JESRA X-0093 and IEC 62563-1.

Testing performed in accordance with these standards consist of visual and metrological tests which check for compliance with the requirements set forth in the standards.


  • Calibration of all displays in accordance with part 14 of the DICOM GSDF standard and the CIE L
  • Updating of the video LUT or the display LUT for monitors which comply with the DDC / CI standard
  • Calibration of multi-monitor systems
  • Execution report for comparing and checking calibration results
  • Test images for visual monitoring of calibration results
  • DICOM conformity
  • Option for color measurement
  • Support for commercially available photometers
  • License is available to all users at the installed workstation
  • Remote control

PerfectLum Suite, additional functions:

  • Performance of acceptance tests per DIN V 6868-57, DIN 6868-157 and IEC 62563-1
  • Performance of constancy tests per DIN V 61223-2, DIN 6868-5 and IEC 6868-157
  • Performance of tests in accordance with JESRA and AAPM
  • Report generator for documents in accordance with legal requirements
  • Automated quality assurance
  • Scheduler with reminder function for planning tests
  • Language support for German, English, Chinese, Japanese and Korean

System requirements:

Microsoft Windows XP SP3, Vista SP1, 7 or 8
Mac OS X, 10.5 to10.8 – Intel hardware required

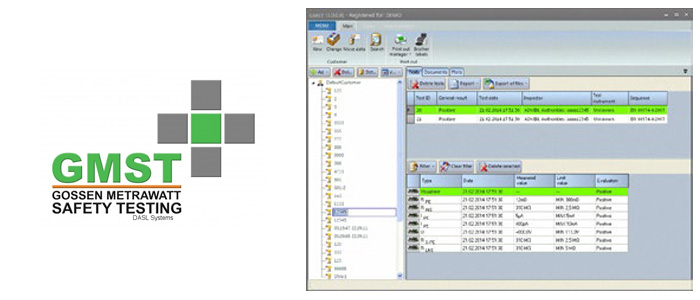

GMST Report Generating Software

Type Article


GMST (pat Manager) is database software for the management of documentation and test data.

For measurements with instruments from the following product ranges:


  • Search and filter database entries according to:
    ID number, customer, device, inventory number, standard, date
  • Print test reports as PDF files, print test labels
  • Display in tabular format
  • Test history
  • Network operation is possible
  • Modern and simple user interface in German, English, Polish and Russian

GMST HostService

Permits internal networking of GMST software thanks to the modular license.
Multiple access to measurements and test data is thus made possible from various workstations.

System requirements:

Microsoft Windows XP SP3, Vista SP1, 7 or 8
Microsoft .NET Framework, version 2.0

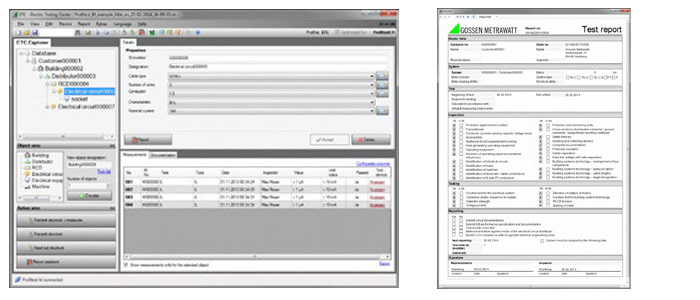

ETC Report Generating Software

Type Article


Report Generating Software for SECULIFE SR Test Instruments

ETC offers a wide variety of support options for data acquisition and management, reports generating
and the control of test sequences.


  • The software copies measured values from the test instruments.
  • Report data can be supplemented.
  • Limit values can be set.
  • Test reports can be saved as PDF files.
  • SecuStore memory adapter for the SECUTEST range and the SECULIFE ST
  • The software copies test reports from the memory adapter and saves them automatically as
    PDF files.

System requirements:

Microsoft Windows XP SP3, Vista SP1, 7 or 8
Microsoft .NET Framework 4 Client Profile
Microsoft Excel as of the XP version for sending reports or structures via e-mail
Acrobat Reader as of version 10 for report previews
